50Nm sectional kit

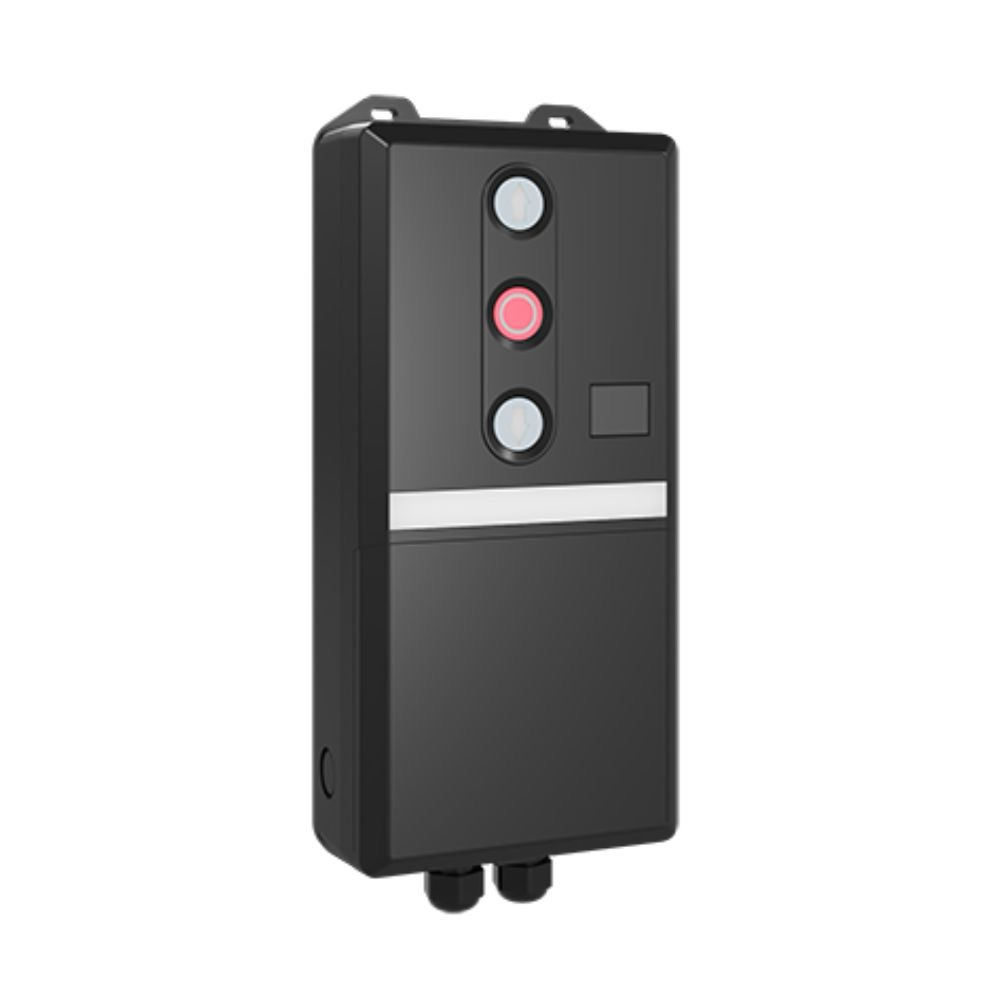

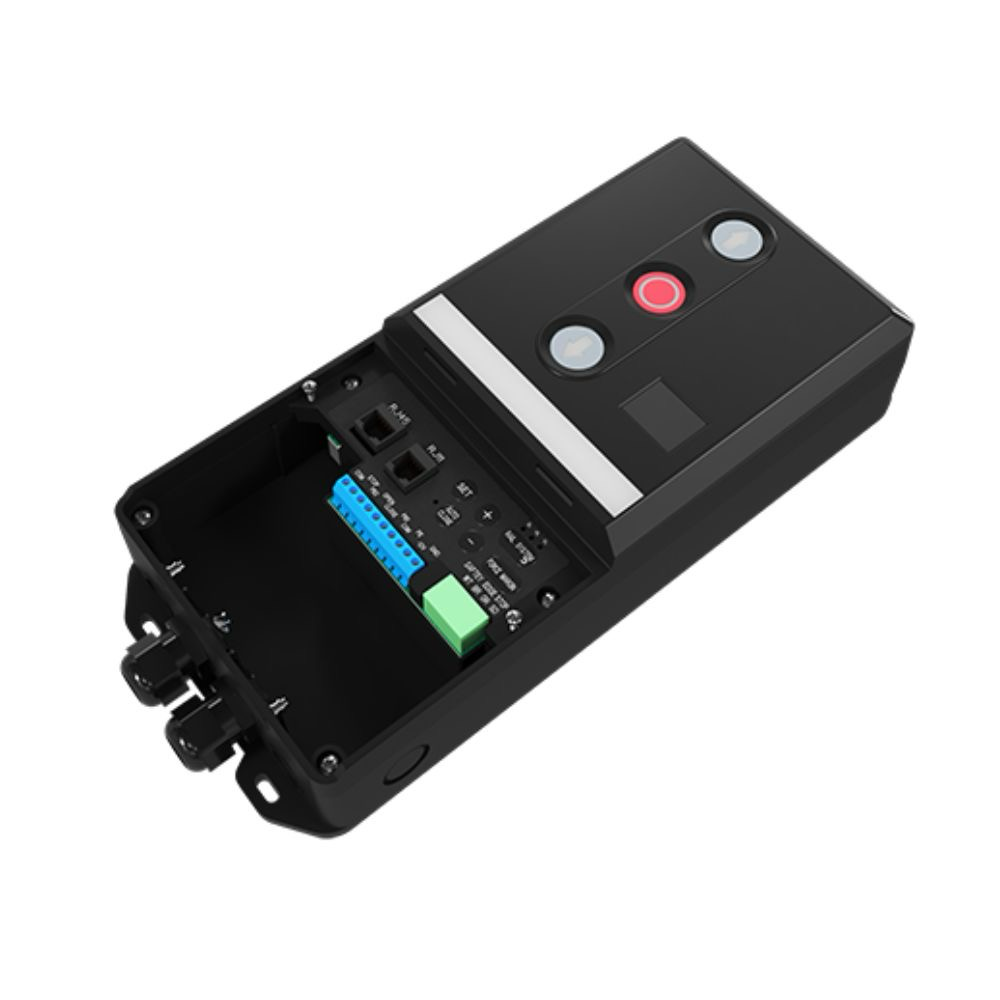

Force 50Nm door max 25m2, electronic board and two controls

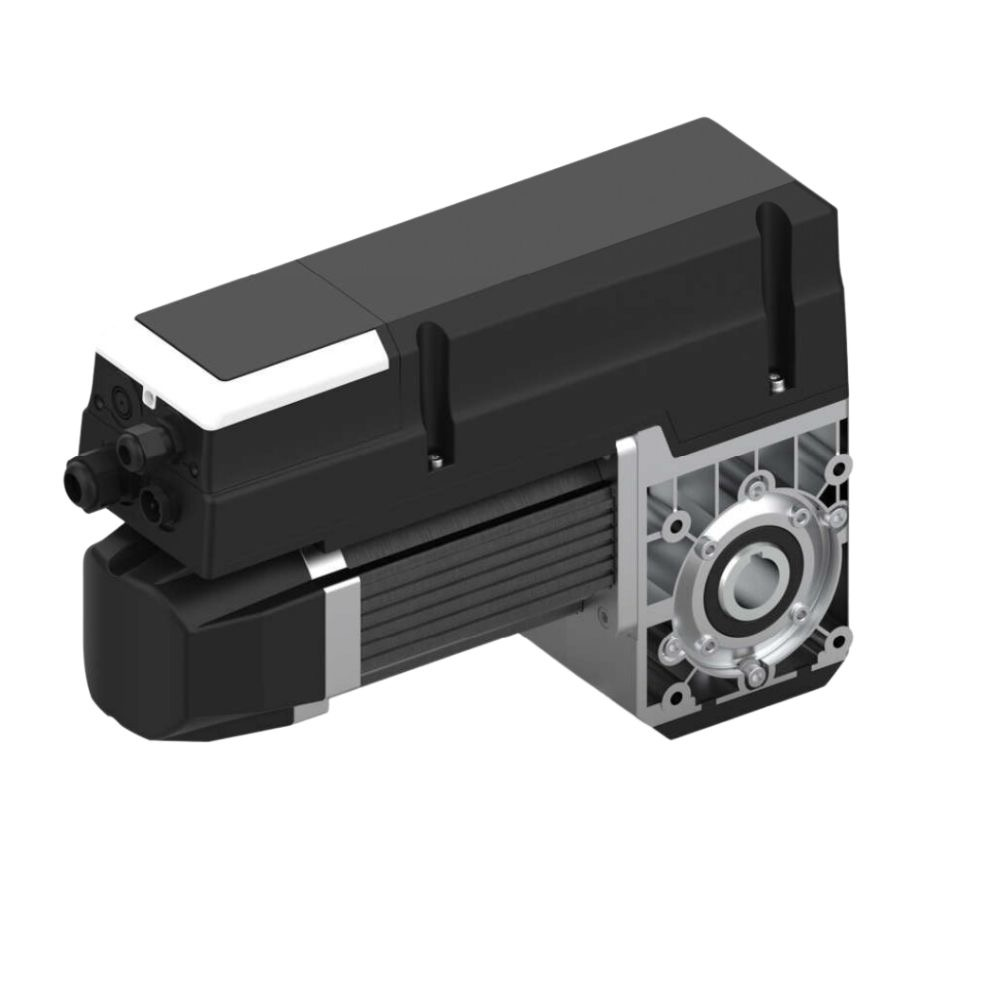

KIT MIKA 50 NM PREMIUM INDUSTRIAL SECTIONAL DOOR MOTOR KIT NEW – 25 m²

Premium 24V axle for intensive use + radio kit + unlocking

• Max. output torque (Nm): 50 Nm
• Nominal output torque (Nm): 35 Nm
• Output speed (rpm): 24-32 rpm
• Output shaft/hollow shaft (mm): φ25.4 mm
• Static holding torque (Nm): 400 Nm
• Door area (m²): ≤22 m²
• Input voltage (V): 110-127/220-240 & 380-420
• Motor power (W): 450 W
• Control system: 24V DC
• Thermal protection temperature: 105 °C
• max. cycles per hour: 20
• Protection class: IP 54
• Temperature range: -20～+40 (+60) °C
