35Nm sectional kit

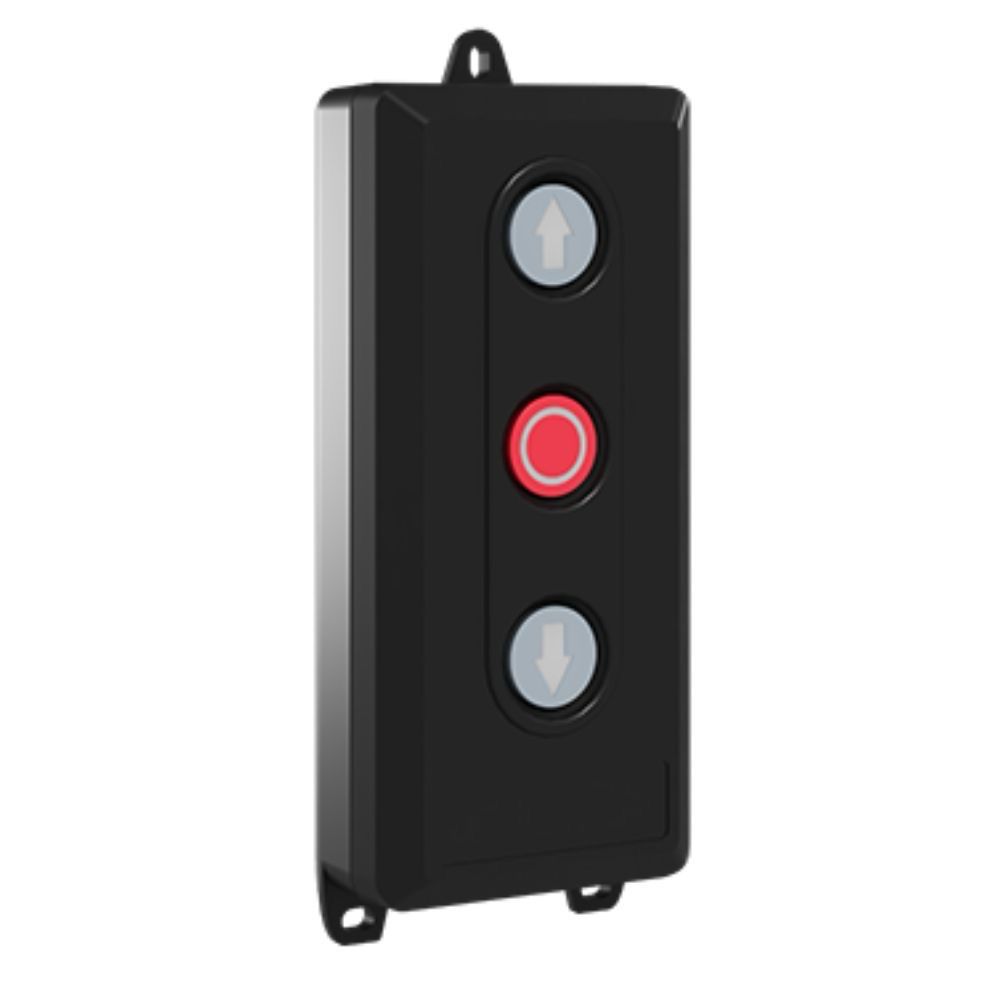

Force 35Nm door max 18m2, electronic board and two controls

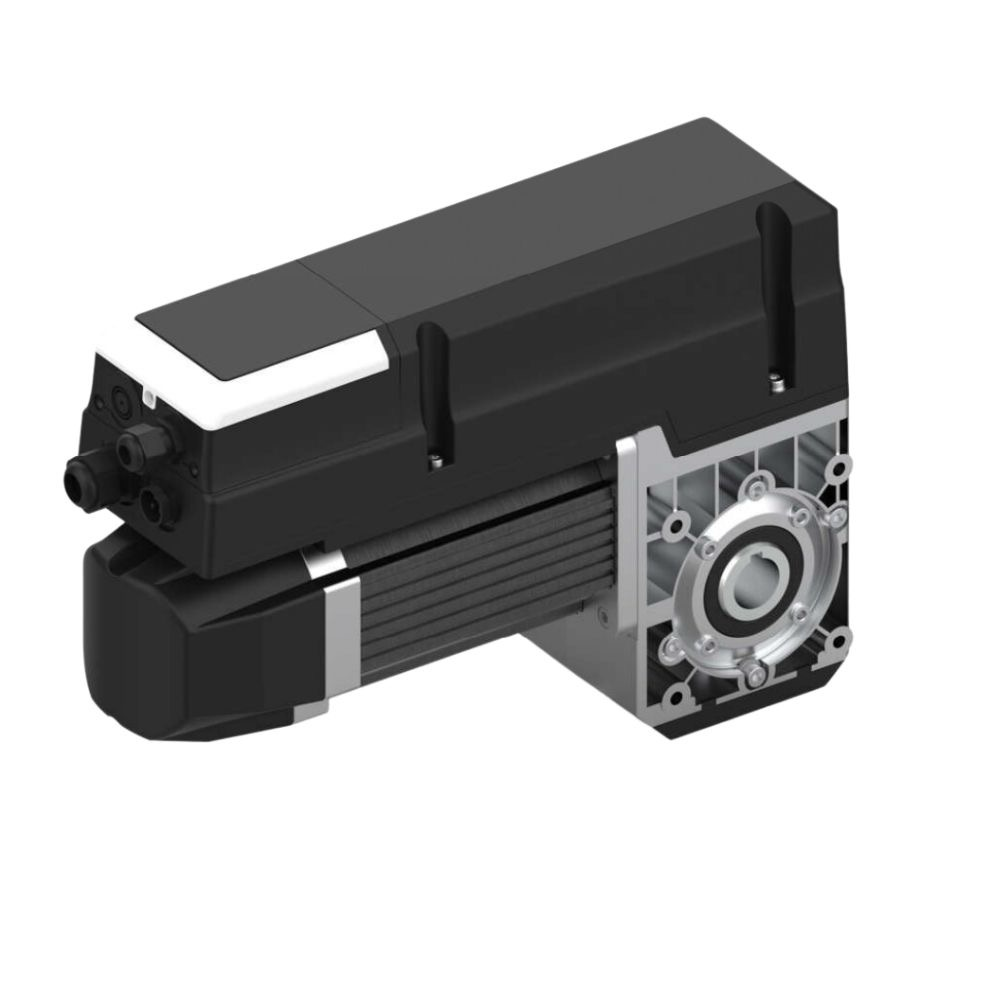

MIKA KIT 35 NM PREMIUM INDUSTRIAL SECTIONAL DOOR MOTOR NEW – 18 m²

Premium 24V intensive use axle + radio kit

• Max. output torque (Nm): 35 Nm
• Nominal output torque (Nm): 25 Nm
• Output speed (rpm): 24-32 rpm
• Output shaft/hollow shaft (mm): φ25.4 mm
• Static holding torque (Nm): 400 Nm
• Door area (m²): ≤18 m²
• Input voltage (V): 110-127 / 220-240V
• Motor power (W): 350 W
• Control system: 24V DC
• Thermal protection temperature: 105 °C
• max. cycles per hour: 20
• Protection class: IP 54
• Temperature range: -20～+40 (+60) °C
