PM1 KIT. Max 1.8 meters M2

PM1 KIT. Maximum length 1.8 meters. 2 motors, electronic board, mirror photocell, and 2 remote controls.

KIT PM1 230V

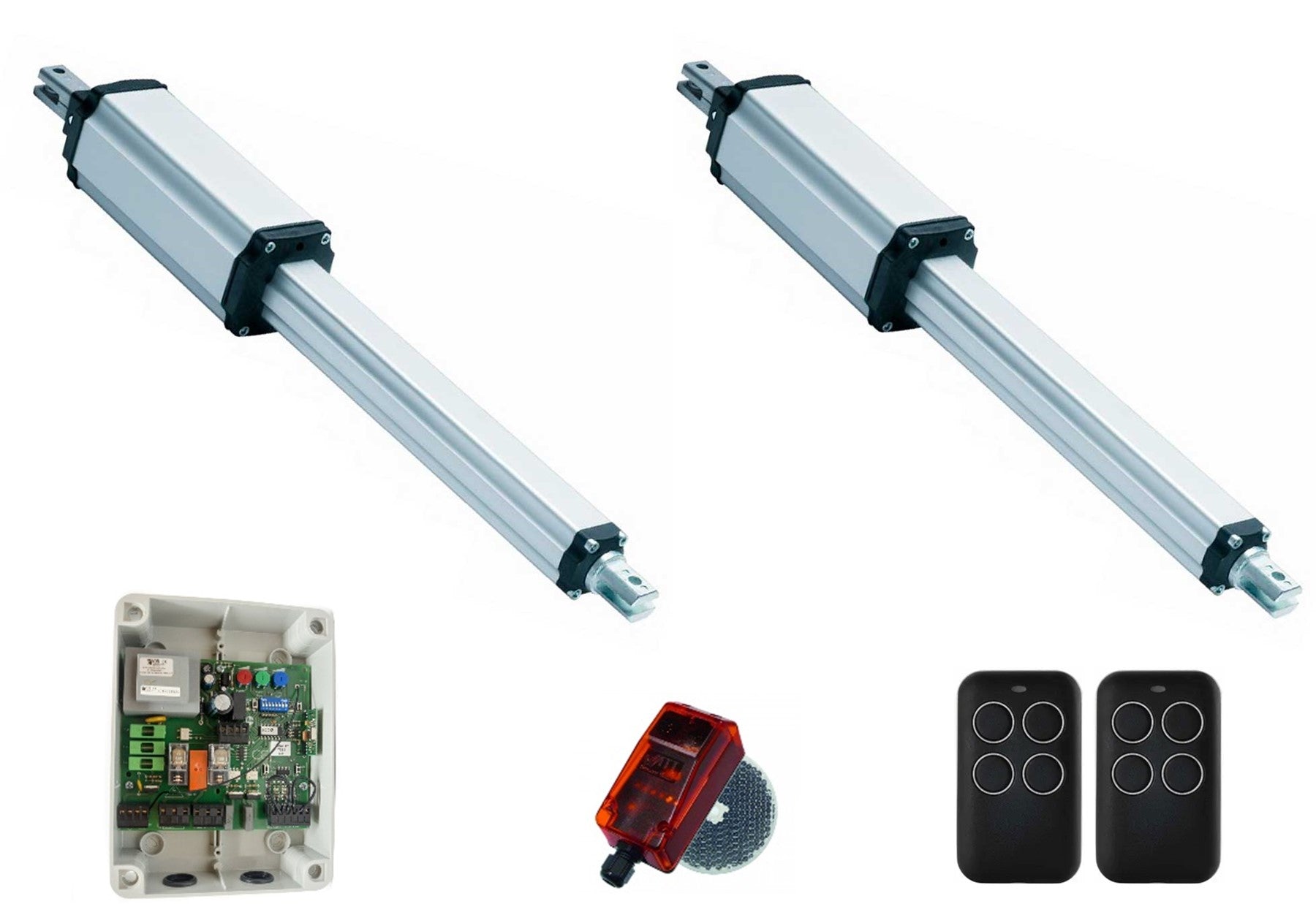

INCLUDES:

• 2 PM1 engines

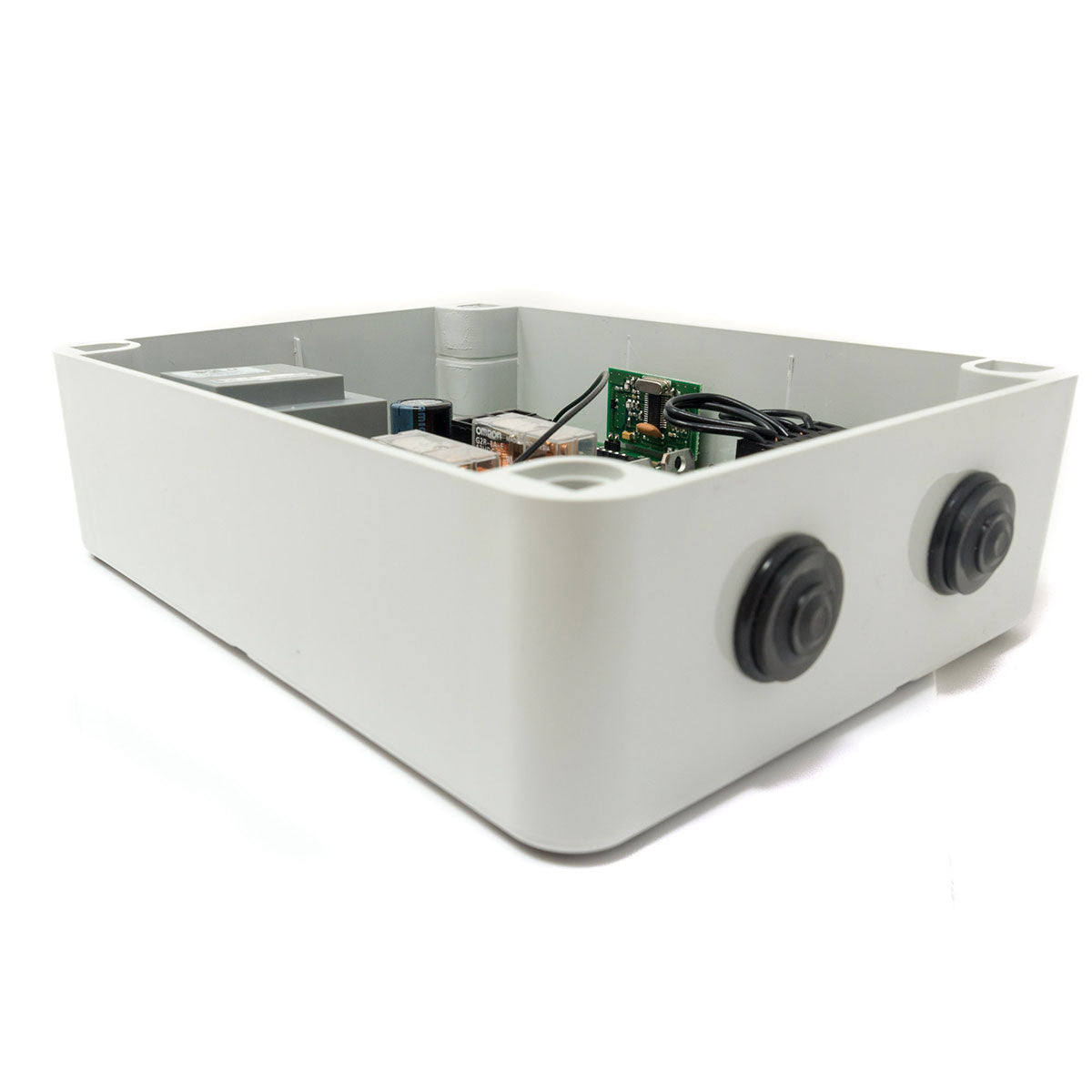

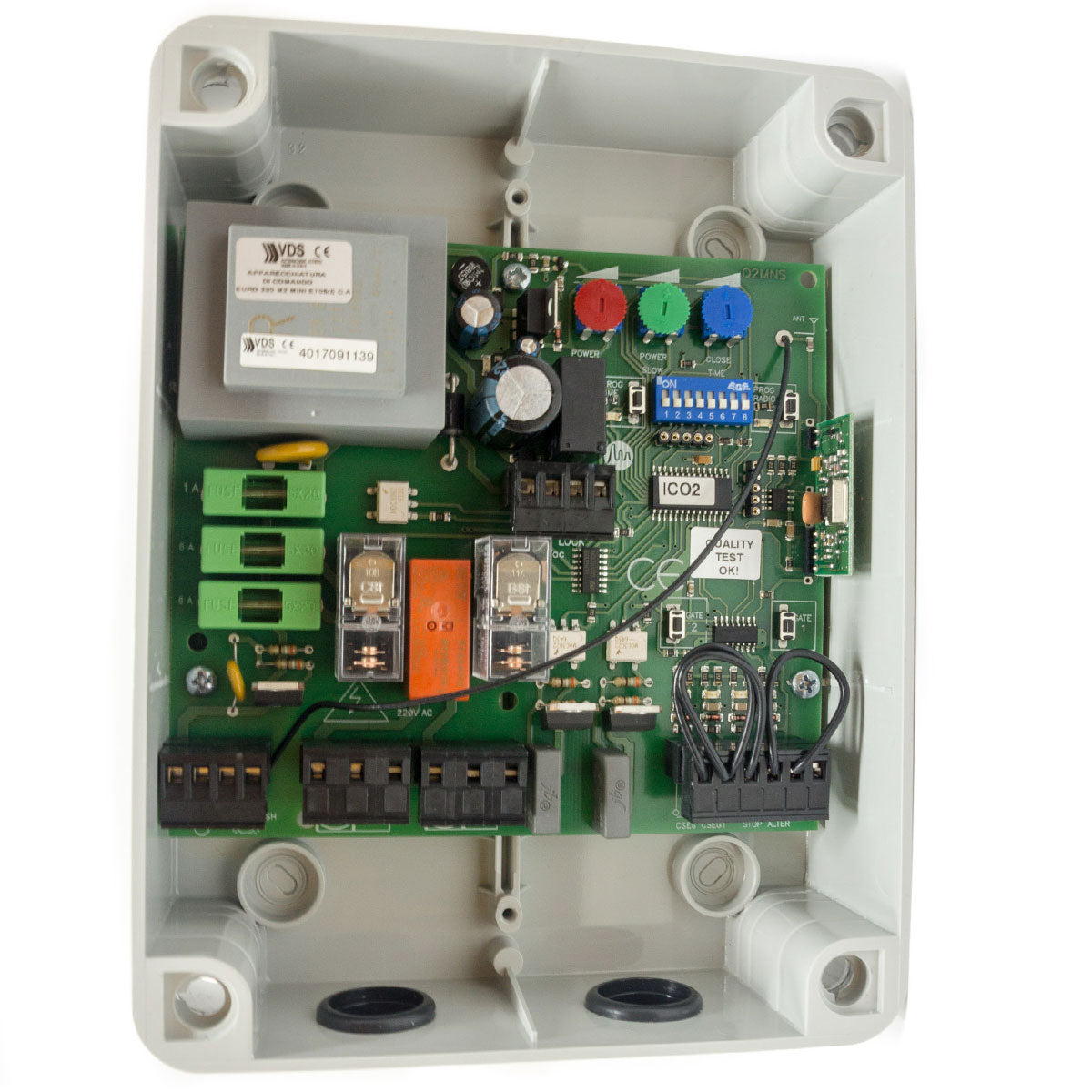

• 1 Electronic control board
• 1 Mirror photocell
• 2 Remote controls

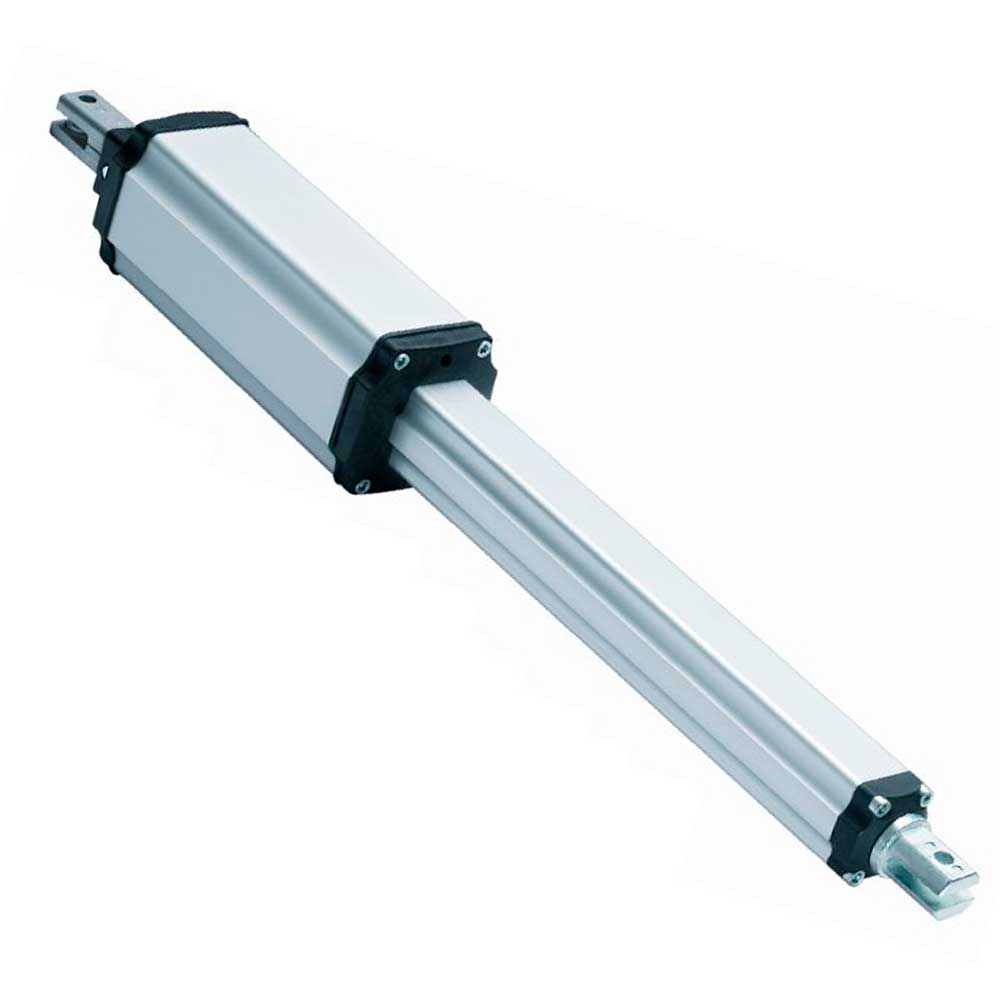

Electromechanical operator for swing or folding doors VDS PM1 230V/C300.

• Irreversible
• Stainless steel stem.
• Extruded aluminum structure.
• Effective travel: 300 mm. For sashes measuring 1.8 metres and weighing up to 250 kg.
• Manual unlocking with key.
• Mechanical parts lubricated with lithium grease against corrosion, oxidation and rust.
• 120° opening.
• Quick assembly with multi-position brackets and support covers in rapid technopolymer.
• Anti-crushing device * (EN 12453)
• Speed reduction * (EN 12453)
