KIT PH 270 R. Hydraulic without M2 lock

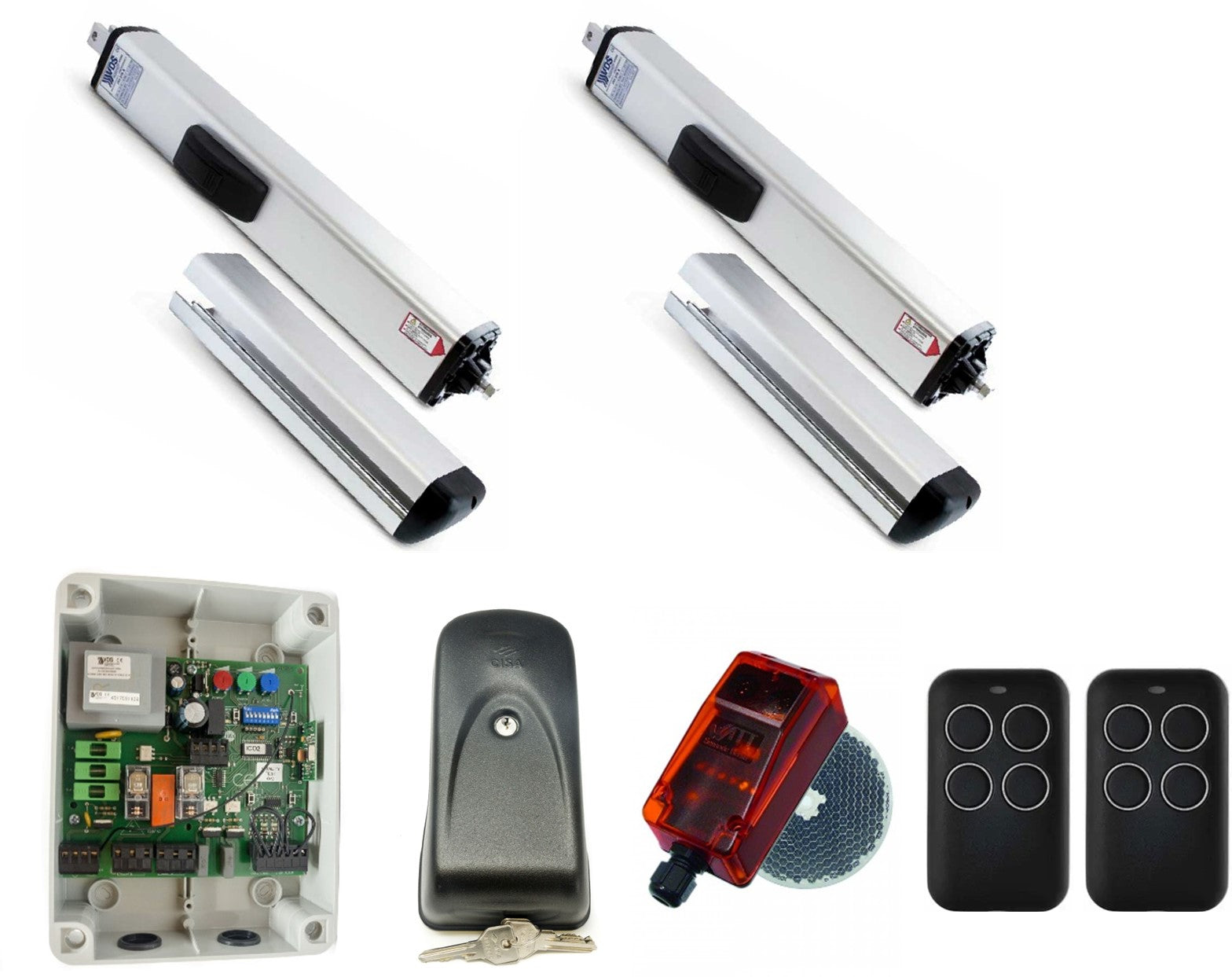

PH 270 R KIT. Hydraulic without lock. Maximum 3 meters. 2 motors, electronic board, Cisa electric lock, mirror photocell, and 2 remote controls.

PH 270 HYDRAULIC KIT WITHOUT LOCK

INCLUDES:

• 2 Reversible hydraulic motors (Non-locking)

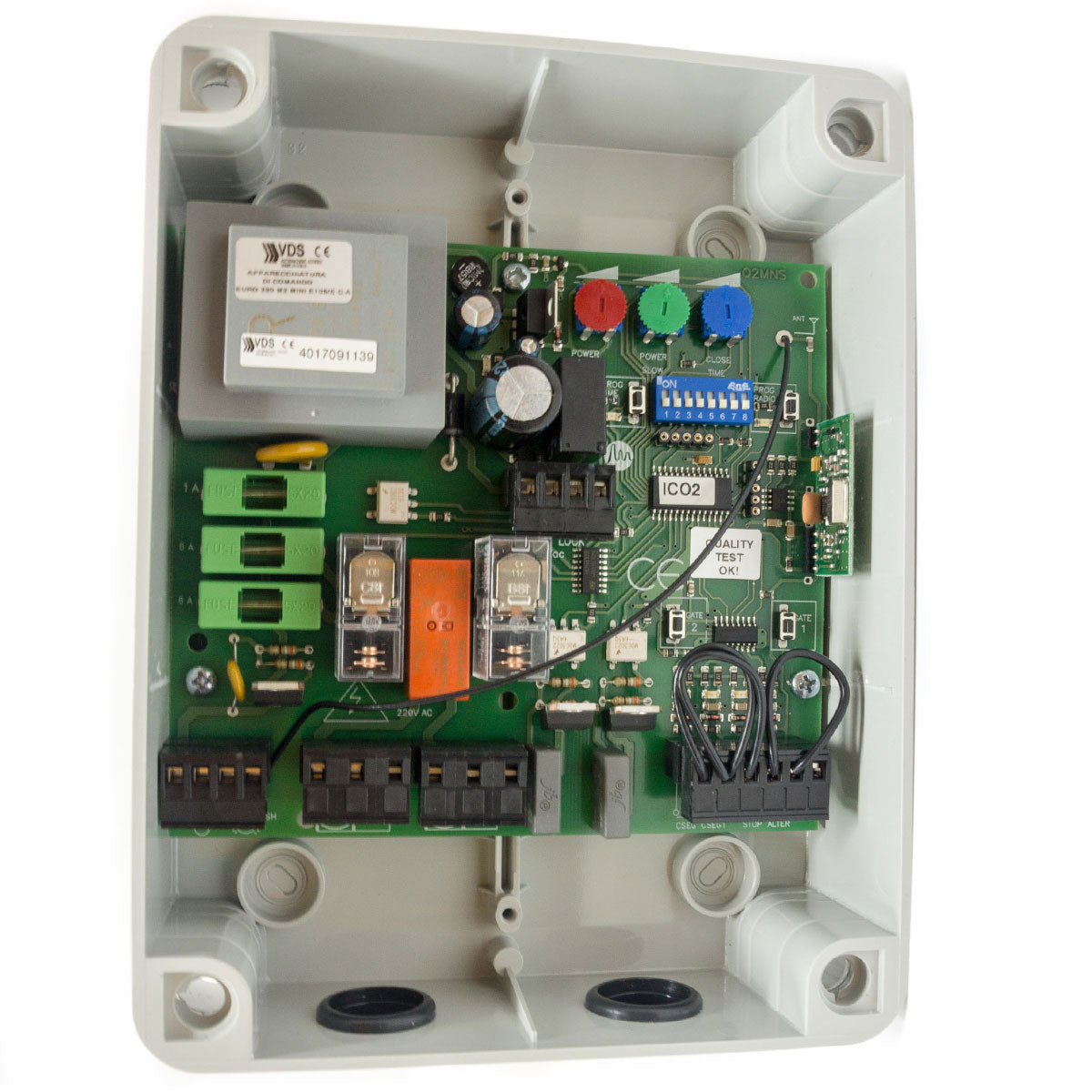

• 1 Electronic control board
• 1 Cisa electric lock
• 1 Mirror safety photocell
• 2 Remote controls

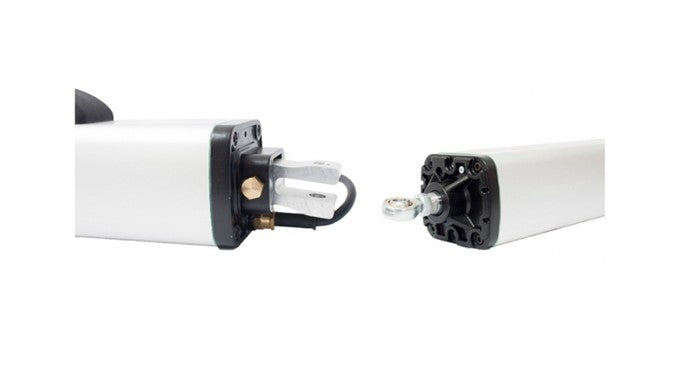

Hydraulic motor for swing or folding doors VDS PH 230V/C270.

• Reversible (Hydraulic)
• Effective travel: 270 mm. For sashes measuring 3 metres and weighing up to 500 kg.
• Manual unlocking with key.
• Oil bath electric motor
• 90° opening.
• Quick mounting with multi-position brackets.
• Hydraulic regulation of deceleration during closing.
• Requires electric lock
